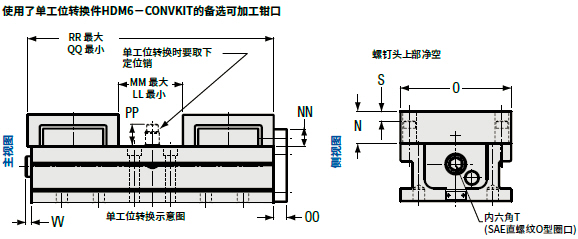

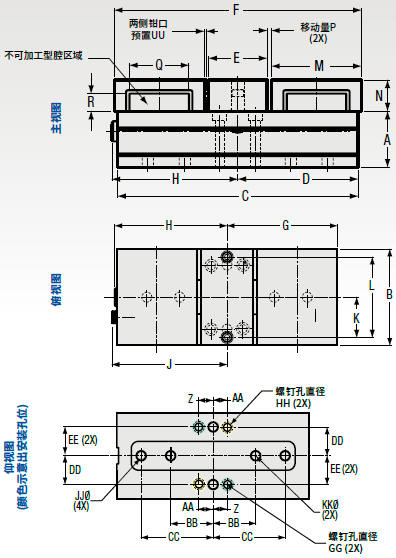

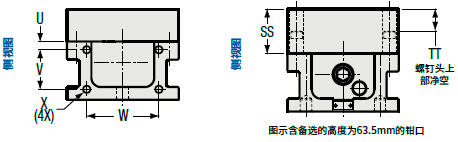

| 參數(shù)表 mm(in) |
| HD普通和液壓鉗 |
|
HDM6 |
HDHM6 |
| A |
79.375 |
79.375 |
| B |
152.400 |
152.400 |
| C |
339.725 |
339.725 |
| D |
169.875 |
169.875 |
| E |
82.550 |
82.550 |
| F |
349.250 |
349.250 |
| G |
174.625 |
174.625 |
| H |
177.800 |
174.630 |
| J |
182.040 |
– |
| K |
63.500 |
63.500 |
| L |
127.000 |
127.000 |
| M |
127.000 |
127.000 |
| N |
43.891 |
43.891 |
| O |
152.400 |
152.400 |
| P |
6.350 |
6.350 |
| Q |
84.120 |
84.120 |
| R |
24.610 |
24.610 |
| S |
13.260 |
13.260 |
| T |
(5/8)
內(nèi)六角 |
(7/16-20 UNF)
O型圈口 |
| U |
11.125 |
11.125 |
| V |
53.975 |
53.975 |
| W |
98.43 |
98.43 |
| X |
M10 x 1.5 |
M10 x 1.5 |
| Z |
25.4 |
25.4 |
| AA |
25.000 |
25.000 |
| BB |
75.000 |
75.000 |
| CC |
127.000 |
127.000 |
| DD |
50.000 |
50.000 |
| EE |
50.8 |
50.8 |
| GG |
5/8-18 |
5/8-18 |
| HH |
– |
– |
| JJ |
15.875 |
15.875 |
| KK |
16.000 |
16.000 |
| LL |
77.770 |
82.550 |
| MM |
90.470 |
95.250 |
| NN |
23.830 |
23.830 |
| OO |
18.540 |
18.540 |
| PP |
30.630 |
30.630 |
| QQ |
331.770 |
336.550 |
| RR |
344.470 |
349.250 |
| SS |
60.960 |
60.960 |
| TT |
30.330 |
30.330 |
| UU |
– |
3.180 |
| VV |
7.92 |
4.78 |
| 鉗身重量 僅為 21.8kg |
|
